SA-H220A(密封圈防水結構) 產品型號總表
| 型號 | 光束角 | 輸入電壓 | 功率 | 燈數 | 光源型號 | 光色 | 控制方式 |
|---|---|---|---|---|---|---|---|
| SA-H220A-DXA-1 CREE XP-P | 3° | DC24V | 7W | 1 | CREE XP-P | ⽩光(W) | DMX |
| SA-H220A-DNA-1 CREE XP-P | ON/OFF | ||||||
| SA-H220A-DXA-1 CREE XP-L-HI |
5°/7°/10°/15°/ |
DC24V | 8W | 1 | CREE XP-L-HI | ⽩光(W) | DMX |
| SA-H220A-DNA-1 CREE XP-L-HI | ON/OFF | ||||||
| SA-H220A-DXB-1 4in1 | 9° | DC24V | 5W | 1 | 4in1 | RGBW | DMX |

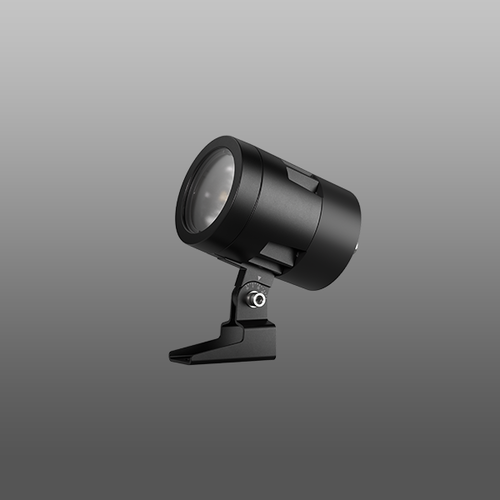

SA-H320A(密封圈防水結構) 產品型號總表
| 型號 | 光束角 | 輸入電壓 | 功率 | 燈數 | 光源型號 | 光色 | 控制方式 |
|---|---|---|---|---|---|---|---|
| SA-H320A-ANA-1 CREE COB CMU | 15°/25°/36°/60° | AC220V | 15W | 1 | CREE COB CMU | ⽩光(W) | ON/OFF |
| SA-H320A-DXA-3 CREE XP-E2 | 7°/10° | DC24V | 7.5W | 3 | CREE XP-E2 | ⽩光(W) | DMX |
| SA-H320A-DNA-3 CREE XP-E2 | ON/OFF | ||||||
| SA-H320A-DXA-3 CREE JR-5050 | 20°/25°/36°/50° | DC24V | 7.5W | 3 | CREE JR-5050 | ⽩光(W) | DMX |
| SA-H320A-DNA-3 CREE JR-5050 | ON/OFF | ||||||
| SA-H320A-DXA-4 CREE XP-E2 | 7°/10° | DC24V | 10W | 4 | CREE XP-E2 | ⽩光(W) | DMX |
| SA-H320A-DNA-4 CREE XP-E2 | ON/OFF | ||||||
| SA-H320A-DTA-4 CREE XP-E2 | ON/OFF(電壓型調光) | ||||||
| SA-H320A-DXA-4 CREE JR-5050 | 20°/25°/36°/50° | DC24V | 10W | 4 | CREE JR-5050 | ⽩光(W) | DMX |
| SA-H320A-DNA-4 CREE JR-5050 | ON/OFF | ||||||
| SA-H320A-DTA-4 CREE JR-5050 | ON/OFF(電壓型調光) | ||||||
| SA-H320A-DXB-4 4in1 | 15°/23° | DC24V | 10W | 4 | 4in1 | RGBW | DMX |
| SA-H320A-DWB-4 4in1 | 15° | DMX(恆功率) |
SA-H520A(密封圈防水結構) 產品型號總表
| 型號 | 光束角 | 輸入電壓 | 功率 | 燈數 | 光源型號 | 光色 | 控制方式 |
|---|---|---|---|---|---|---|---|
| SA-H520A-DXA-4 CREE XP-P | 3° | DC24V | 24W | 4 | CREE XP-P | ⽩光(W) | DMX |
| SA-H520A-DNA-4 CREE XP-P | ON/OFF | ||||||
| SA-H520A-DTA-4 CREE XP-P | ON/OFF(電壓型調光) | ||||||
| SA-H520A-DXA-4 CREE XP-L-HI | 5°/7°/10°/15°/ 20°/30°/45°/55° |
DC24V | 30W | 4 | CREE XP-L-HI | ⽩光(W) | DMX |
| SA-H520A-DNA-4 CREE XP-L-HI | ON/OFF | ||||||
| SA-H520A-DTA-4 CREE XP-L-HI | ON/OFF(電壓型調光) | ||||||
| SA-H520A-DXA-9 CREE XP-E2 | 7°/10° | DC24V | 22W | 9 | CREE XP-E2 | ⽩光(W) | DMX |
| SA-H520A-DNA-9 CREE XP-E2 | AC220V | ON/OFF | |||||
| SA-H520A-ANA-9 CREE XP-E2 | 24W | 9 | ⽩光(W) | ON/OFF | |||
| SA-H520A-DXA-9 CREE JR-5050 | 20°/25°/36°/50° | DC24V | 22W | 9 | CREE JR-5050 | ⽩光(W) | DMX |
| SA-H520A-DNA-9 CREE JR-5050 | ON/OFF | ||||||
| SA-H520A-ANA-9 CREE JR-5050 | AC220V | 24W | 9 | ⽩光(W) | ON/OFF | ||
| SA-H520A-DXB-4 4in1 | 9° | DC24V | 24W | 4 | 4in1 | RGBW | DMX |
| SA-H520A-DXB-9 4in1 | 15°/23° | DC24V | 22W | 9 | 4in1 | RGBW | DMX |
| SA-H520A-DWB-9 4in1 | 15° | DMX(恆功率) |
SA-H720A(密封圈防水結構) 產品型號總表
| 型號 | 光束角 | 輸入電壓 | 功率 | 燈數 | 光源型號 | 光色 | 控制方式 |
|---|---|---|---|---|---|---|---|
| SA-H720A-DXA-6 CREE XP-P | 3° | DC24V | 36W | 6 | CREE XP-P | ⽩光(W) | DMX |
| SA-H720A-DNA-6 CREE XP-P | ON/OFF | ||||||
| SA-H720A-DTA-6 CREE XP-P | ON/OFF(電壓型調光) | ||||||
| SA-H720A-DXA-6 CREE XP-L-HI | 5°/7°/10°/15°/ 20°/30°/45°/55° |
DC24V | 41W | 6 | CREE XP-L-HI | ⽩光(W) | DMX |
| SA-H720A-DNA-6 CREE XP-L-HI | ON/OFF | ||||||
| SA-H720A-DTA-6 CREE XP-L-HI | ON/OFF(電壓型調光) | ||||||
| SA-H720A-DXA-18 CREE XP-E2 | 7°/10° | DC24V | 45W | 18 | CREE XP-E2 | ⽩光(W) | DMX |
| SA-H720A-DNA-18 CREE XP-E2 | ON/OFF | ||||||
| SA-H720A-DTA-18 CREE XP-E2 | ON/OFF(電壓型調光) | ||||||
| SA-H720A-ANA-18 CREE XP-E2 | AC220V | 50W | 18 | ⽩光(W) | ON/OFF | ||
| SA-H720A-AVA-18 CREE XP-E2 | 0~10V调光 | ||||||
| SA-H720A-DXA-18 CREE JR-5050 | 20°/25°/36°/50° | DC24V | 45W | 18 | CREE JR-5050 | ⽩光(W) | DMX |
| SA-H720A-DNA-18 CREE JR-5050 | ON/OFF | ||||||
| SA-H720A-DTA-18 CREE JR-5050 | ON/OFF(電壓型調光) | ||||||
| SA-H720A-ANA-18 CREE JR-5050 | AC220V | 50W | 18 | ⽩光(W) | ON/OFF | ||
| SA-H720A-AVA-18 CREE JR-5050 | 0~10V調光 | ||||||
| SA-H720A-DXB-6 4in1 | 9° | DC24V | 45W | 6 | 4in1 | RGBW | DMX |
| SA-H720A-AXB-18 4in1 | 15°/23° | AC220V | 45W | 18 | 4in1 | RGBW | DMX |
| SA-H720A-DXB-18 4in1 | DC24V | DMX | |||||
| SA-H720A-DWB-18 4in1 | 15° | DC24V | 30W | 18 | 4in1 | RGBW | DMX(恆功率) |
SA-H220(封膠防水結構) 產品型號總表
| 型號 | 光束角 | 輸入電壓 | 功率 | 燈數 | 光源型號 | 光色 | 控制方式 |
|---|---|---|---|---|---|---|---|
| SA-H220-DXA-1 CREE XP-P | 3° | DC24V | 7W | 1 | CREE XP-P | ⽩光(W) | DMX |
| SA-H220-DNA-1 CREE XP-P | ON/OFF | ||||||
| SA-H220-DXA-1 CREE XP-L-HI |
5°/7°/10°/15°/ |
DC24V | 8W | 1 | CREE XP-L-HI | ⽩光(W) | DMX |
| SA-H220-DNA-1 CREE XP-L-HI | ON/OFF | ||||||
| SA-H220-DXB-1 4in1 | 9° | DC24V | 5W | 1 | 4in1 | RGBW | DMX |
SA-H320A(封膠防水結構) 產品型號總表
| 型號 | 光束角 | 輸入電壓 | 功率 | 燈數 | 光源型號 | 光色 | 控制方式 |
|---|---|---|---|---|---|---|---|
| SA-H320-ANA-1 CREE COB CMU | 15°/25°/36°/60° | AC220V | 15W | 1 | CREE COB CMU | ⽩光(W) | ON/OFF |
| SA-H320-DXA-3 CREE XP-E2 | 7°/10° | DC24V | 7.5W | 3 | CREE XP-E2 | ⽩光(W) | DMX |
| SA-H320-DNA-3 CREE XP-E2 | ON/OFF | ||||||
| SA-H320-DXA-3 CREE JR-5050 | 20°/25°/36°/50° | DC24V | 7.5W | 3 | CREE JR-5050 | ⽩光(W) | DMX |
| SA-H320-DNA-3 CREE JR-5050 | ON/OFF | ||||||
| SA-H320-DXA-4 CREE XP-E2 | 7°/10° | DC24V | 10W | 4 | CREE XP-E2 | ⽩光(W) | DMX |
| SA-H320-DNA-4 CREE XP-E2 | ON/OFF | ||||||
| SA-H320-DTA-4 CREE XP-E2 | ON/OFF(電壓型調光) | ||||||
| SA-H320-DXA-4 CREE JR-5050 | 20°/25°/36°/50° | DC24V | 10W | 4 | CREE JR-5050 | ⽩光(W) | DMX |
| SA-H320-DNA-4 CREE JR-5050 | ON/OFF | ||||||
| SA-H320-DTA-4 CREE JR-5050 | ON/OFF(電壓型調光) | ||||||
| SA-H320-DXB-4 4in1 | 15°/23° | DC24V | 10W | 4 | 4in1 | RGBW | DMX |
| SA-H320-DWB-4 4in1 | 15° | DMX(恆功率) |
SA-H520(封膠防水結構) 產品型號總表
SA-H720(封膠防水結構) 產品型號總表
| 型號 | 光束角 | 輸入電壓 | 功率 | 燈數 | 光源型號 | 光色 | 控制方式 |
|---|---|---|---|---|---|---|---|
| SA-H520-DXA-4 CREE XP-P | 3° | DC24V | 24W | 4 | CREE XP-P | ⽩光(W) | DMX |
| SA-H520-DNA-4 CREE XP-P | ON/OFF | ||||||
| SA-H520-DTA-4 CREE XP-P | ON/OFF(電壓型調光) | ||||||
| SA-H520-DXA-4 CREE XP-L-HI | 5°/7°/10°/15°/ 20°/30°/45°/55° |
DC24V | 30W | 4 | CREE XP-L-HI | ⽩光(W) | DMX |
| SA-H520-DNA-4 CREE XP-L-HI | ON/OFF | ||||||
| SA-H520-DTA-4 CREE XP-L-HI | ON/OFF(電壓型調光) | ||||||
| SA-H520-DXA-9 CREE XP-E2 | 7°/10° | DC24V | 22W | 9 | CREE XP-E2 | ⽩光(W) | DMX |
| SA-H520-DNA-9 CREE XP-E2 | AC220V | ON/OFF | |||||
| SA-H520-ANA-9 CREE XP-E2 | 24W | 9 | ⽩光(W) | ON/OFF | |||
| SA-H520-DXA-9 CREE JR-5050 | 20°/25°/36°/50° | DC24V | 22W | 9 | CREE JR-5050 | ⽩光(W) | DMX |
| SA-H520-DNA-9 CREE JR-5050 | ON/OFF | ||||||
| SA-H520-ANA-9 CREE JR-5050 | AC220V | 24W | 9 | ⽩光(W) | ON/OFF | ||
| SA-H520-DXB-4 4in1 | 9° | DC24V | 24W | 4 | 4in1 | RGBW | DMX |
| SA-H520-DXB-9 4in1 | 15°/23° | DC24V | 22W | 9 | 4in1 | RGBW | DMX |
| SA-H520-DWB-9 4in1 | 15° | DMX(恆功率) |
SA-H720(封膠防水結構) 產品型號總表
| 型號 | 光束角 | 輸入電壓 | 功率 | 燈數 | 光源型號 | 光色 | 控制方式 |
|---|---|---|---|---|---|---|---|
| SA-H720-DXA-6 CREE XP-P | 3° | DC24V | 36W | 6 | CREE XP-P | ⽩光(W) | DMX |
| SA-H720-DNA-6 CREE XP-P | ON/OFF | ||||||
| SA-H720-DTA-6 CREE XP-P | ON/OFF(電壓型調光) | ||||||
| SA-H720-DXA-6 CREE XP-L-HI | 5°/7°/10°/15°/ 20°/30°/45°/55° |
DC24V | 41W | 6 | CREE XP-L-HI | ⽩光(W) | DMX |
| SA-H720-DNA-6 CREE XP-L-HI | ON/OFF | ||||||
| SA-H720-DTA-6 CREE XP-L-HI | ON/OFF(電壓型調光) | ||||||
| SA-H720-DXA-18 CREE XP-E2 | 7°/10° | DC24V | 45W | 18 | CREE XP-E2 | ⽩光(W) | DMX |
| SA-H720-DNA-18 CREE XP-E2 | ON/OFF | ||||||
| SA-H720-DTA-18 CREE XP-E2 | ON/OFF(電壓型調光) | ||||||
| SA-H720-ANA-18 CREE XP-E2 | AC220V | 50W | 18 | ⽩光(W) | ON/OFF | ||
| SA-H720-AVA-18 CREE XP-E2 | 0~10V调光 | ||||||
| SA-H720-DXA-18 CREE JR-5050 | 20°/25°/36°/50° | DC24V | 45W | 18 | CREE JR-5050 | ⽩光(W) | DMX |
| SA-H720-DNA-18 CREE JR-5050 | ON/OFF | ||||||
| SA-H720-DTA-18 CREE JR-5050 | ON/OFF(電壓型調光) | ||||||
| SA-H720-ANA-18 CREE JR-5050 | AC220V | 50W | 18 | ⽩光(W) | ON/OFF | ||
| SA-H720-AVA-18 CREE JR-5050 | 0~10V調光 | ||||||
| SA-H720-DXB-6 4in1 | 9° | DC24V | 45W | 6 | 4in1 | RGBW | DMX |
| SA-H720-AXB-18 4in1 | 15°/23° | AC220V | 45W | 18 | 4in1 | RGBW | DMX |
| SA-H720-DXB-18 4in1 | DC24V | DMX | |||||
| SA-H720-DWB-18 4in1 | 15° | DC24V | 30W | 18 | 4in1 | RGBW | DMX(恆功率) |
